| Lugar de origen: | China |
|---|---|
| Certificación: | CE/FCC/ROHS |
| Número de modelo: | QS-75 |
| Cantidad de orden mínima: | 1 pedazo |
| Precio: | USD900 - USD1800/unit |
| Detalles de empaquetado: | Cartón |
| Tiempo de entrega: | 10-30 días laborables |
| Condiciones de pago: | L/C, T/T, Western Union |
| Capacidad de la fuente: | 1000 unidades/mes |
| Nombre de la marca: | iBoard or OEM | Nombre de producto: | 75" pantalla plana interactiva del IR |
|---|---|---|---|
| Modelo: | QS-75 | Tamaño de pantalla: | 75 pulgadas |
| Color: | Negro | Material: | Marco de aluminio |
| Tipo de la pantalla: | LED | Área de presentación: | 1650.2*928.3 milímetro (74,52 pulgadas) |
| Ratio de la exhibición: | 16:9 | Resolución: | 3840x2160 |
| Ángulo de visión: | 178° | Brillo: | ² de los 450cd/m |
| Sistema: | Android 8 | RAM: | 4G |
| ROM: | 32G | Tecnología del tacto: | Tacto infrarrojo |
| Maneras del tacto: | Finger o cualquier objetos opacos | Puntos del tacto: | 10 puntos a 20 puntos |
| Ayuda OPS: | Una ranura de OPS (opcional) | Curso de la vida: | 50000 horas |
| Tipo de empaquetado: | Cartón | Interfaz: | USB2.0/3.0, HDMI etc. |
| Alta luz: | 350cd/M2 pantalla plana interactiva Whiteboard,50000hours pantalla plana interactiva Whiteboard,Pantalla plana del tablero de Smart de la ranura de OPS |
||
| Display | |||||
| Screen Type | TFT LED | Display Ratio | 16:9 | ||
| Display Area |
1650.2*928.3 mm(74.52 inch) |
View Angle | 178° | ||
| Resolution | 3840(H) x 2160(V) | Response Time | 6.5 ms | ||
| Brightness | 350 cd/m3 | Color Depth | 10bit(R), 1.07Billon colors | ||
| Contrast | 4000:1 | Life Time | 50,000 Hrs | ||
|
|||||
| TV SYSTEM | |||||
| Connection | N/A | Sound System | D/K, B/G, I, M | ||
| Video System | PAL, NTSC, SECAM | Channel | N/A | ||
| Sound/SPeaker features | |||||
| Speaker Type | Built-In | Speaker output | 10W * 2 | ||
| Audio Stereo | Balance, Auto volume control, surround sound | ||||
| android system | |||||
| Android Version | Android 8.0 | GPU | ARM Mali-51450MHz | ||
| CPU |
2*ARM Cortex-A73 2*ARM Cortex-A53 |
RAM | 4G | ||
| Dominant Frequency | 1.5G | ROM | 32G | ||
| DISPLAY CONNECTION PORTS | |||||
| Input Ports (Front) | HDMI 1.4*1；USB Touch Port (B)*1, USB2.0*3(multi use for Android,OPS and external PC) | Output Ports(back) |
AV-out*1; HeadPhone*1; SPDIF*1; HDMI *1 |
||
| Input Ports (Back) |
HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1; USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1, DP*1 |
||||
| TOUCH SYSTEM | |||||
| Sensing Type | Infrared Touch | Writing Style | Finger; Stylus,any opaque object | ||
| Positioning resolution | 32767 x 32767 | Communication Mode | Full-speed USB (Plug and Play) | ||
| Scanning Speed | 4ms | Surface Glass | 4mm tempered Glass | ||
| Positioning Accuracy | ≤3mm |
OS and points support (driver free) |
Windows 7/8/10, 10 points Android 4.0 and up, 10 points Mac 10.1 to 11, 1 point Linux ubuntu 14.04 ~18.04,, 10 points |
||
| Internet | |||||
| Ethernet | 802.3 10/100 | Wifi | IEEE 802.11 a/b/g/n/ac, 802.3, 802.3u | ||
| Bluetooth | 4.2 or Later | ||||

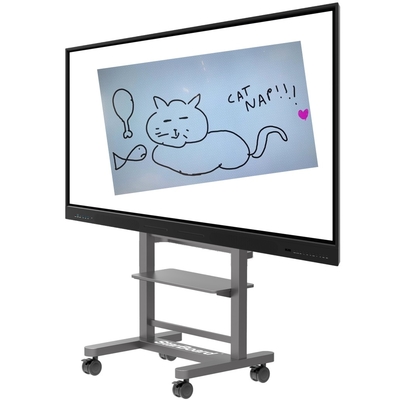

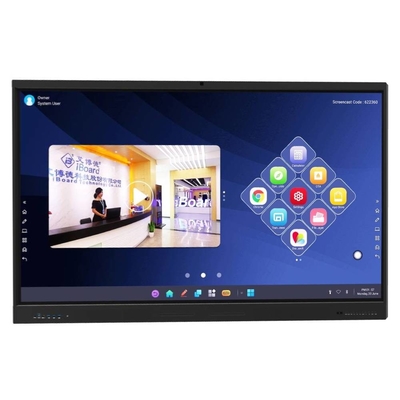

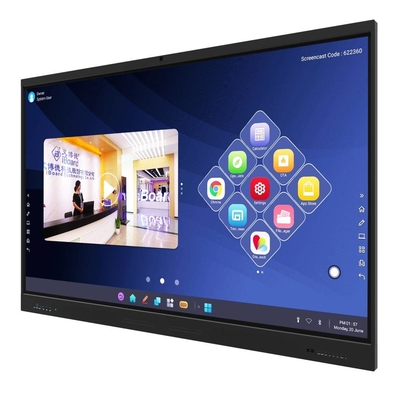

Interactive display for training, writing annotation, camera display, connecting to an external PC, playing multimedia audio and video.
Newly design, Ultra Slim Frame, with the newe ultra-slim frame and modern styling frame width is only 2.04cm, maximising the area used for touch input and displaying vibrant content. Bring the ultimate visual experience.
High-speed multi-point interactive touch technology supporting up to 20 touch points. Using the best Infrared touch sensors, interactions are smooth and fast.
OPS PC module compliant solt support the Intel OPS(Open Pluggable Specification) standard allowing users to add PC level functionality with ease. (It is optional for customers, need extra cost.)
